FashionMNIST
INFO
图像分类、机器学习入门、灰度图像
概述
FashionMNIST 是一个广泛用于测试机器学习算法的图像数据集，特别是在图像识别领域。它由 Zalando 发布，旨在替代传统的 MNIST 数据集，后者主要包含手写数字的图片。FashionMNIST 的设计初衷是提供一个稍微更具挑战性的问题，同时保持与原始 MNIST 数据集相同的图像大小（28x28 像素）和结构（训练集60,000张图片，测试集10,000张图片）。
FashionMNIST 包含来自 10 个类别的服装和鞋类商品的灰度图像。这些类别包括：
- T恤/上衣（T-shirt/top）
- 裤子（Trouser）
- 套头衫（Pullover）
- 裙子（Dress）
- 外套（Coat）
- 凉鞋（Sandal）
- 衬衫（Shirt）
- 运动鞋（Sneaker）
- 包（Bag）
- 短靴（Ankle boot）
每个类别都有相同数量的图像，使得这个数据集成为一个平衡的数据集。这些图像的简单性和标准化尺寸使得 FashionMNIST 成为计算机视觉和机器学习领域入门级的理想选择。数据集被广泛用于教育和研究，用于测试各种图像识别方法的效果。
本案例主要：
- 使用
pytorch进行ResNet34(残差神经网络)网络的构建、模型训练与评估 - 使用
swanlab跟踪超参数、记录指标和可视化监控整个训练周期
环境安装
本案例基于Python>=3.8，请在您的计算机上安装好Python。 环境依赖：
torch
torchvision
swanlab快速安装命令：
bash
pip install torch torchvision swanlab完整代码
python
import os
import random
import numpy as np
import torch
from torch import nn, optim, utils
from torchvision.datasets import FashionMNIST
from torchvision.transforms import ToTensor, Compose, Resize, Lambda
import swanlab
def set_seed(seed=42):
"""设置所有随机种子以确保可重复性"""
random.seed(seed)
np.random.seed(seed)
torch.manual_seed(seed)
torch.cuda.manual_seed_all(seed)
# 设置CUDA的随机种子
if torch.cuda.is_available():
torch.backends.cudnn.deterministic = True
torch.backends.cudnn.benchmark = False
# 捕获并可视化前20张图像
def log_images(loader, num_images=16):
images_logged = 0
logged_images = []
for images, labels in loader:
# images: batch of images, labels: batch of labels
for i in range(images.shape[0]):
if images_logged < num_images:
# 使用swanlab.Image将图像转换为wandb可视化格式
logged_images.append(swanlab.Image(images[i], caption=f"Label: {labels[i]}", size=(128, 128)))
images_logged += 1
else:
break
if images_logged >= num_images:
break
swanlab.log({"Preview/FashionMNIST": logged_images})
if __name__ == "__main__":
# 设置随机种子
set_seed(42)
# 设置device
try:
use_mps = torch.backends.mps.is_available()
except AttributeError:
use_mps = False
if torch.cuda.is_available():
device = "cuda"
elif use_mps:
device = "mps"
else:
device = "cpu"
# 初始化swanlab
run = swanlab.init(
project="FashionMNIST",
experiment_name="resnet50",
config={
"model": "Resnet50",
"optim": "Adam",
"lr": 1e-4,
"batch_size": 32,
"num_epochs": 10,
"train_dataset_num": 55000,
"val_dataset_num": 5000,
"device": device,
"num_classes": 10,
},
)
# 定义转换：调整大小并转换为3通道
transform = Compose([
ToTensor(),
Resize((224, 224), antialias=True), # ResNet期望224x224的输入
Lambda(lambda x: x.repeat(3, 1, 1)) # 将单通道转换为3通道
])
# 设置训练集、验证集和测试集
dataset = FashionMNIST(os.getcwd(), train=True, download=True, transform=transform)
train_dataset, val_dataset = utils.data.random_split(
dataset, [run.config.train_dataset_num, run.config.val_dataset_num]
)
train_loader = utils.data.DataLoader(train_dataset, batch_size=run.config.batch_size, shuffle=True)
val_loader = utils.data.DataLoader(val_dataset, batch_size=1, shuffle=False)
# 初始化模型、损失函数和优化器
if run.config.model == "Resnet18":
from torchvision.models import resnet18
model = resnet18(pretrained=True)
model.fc = nn.Linear(model.fc.in_features, run.config.num_classes)
elif run.config.model == "Resnet34":
from torchvision.models import resnet34
model = resnet34(pretrained=True)
model.fc = nn.Linear(model.fc.in_features, run.config.num_classes)
elif run.config.model == "Resnet50":
from torchvision.models import resnet50
model = resnet50(pretrained=True)
model.fc = nn.Linear(model.fc.in_features, run.config.num_classes)
elif run.config.model == "Resnet101":
from torchvision.models import resnet101
model = resnet101(pretrained=True)
model.fc = nn.Linear(model.fc.in_features, run.config.num_classes)
elif run.config.model == "Resnet152":
from torchvision.models import resnet152
model = resnet152(pretrained=True)
model.fc = nn.Linear(model.fc.in_features, run.config.num_classes)
model.to(torch.device(device))
criterion = nn.CrossEntropyLoss()
optimizer = optim.Adam(model.parameters(), lr=run.config.lr)
# （可选）看一下数据集的前8张图像
log_images(train_loader, 8)
# 开始训练
for epoch in range(1, run.config.num_epochs+1):
swanlab.log({"train/epoch": epoch}, step=epoch)
model.train() # 确保模型处于训练模式
train_correct = 0
train_total = 0
# 训练循环
for iter, batch in enumerate(train_loader):
x, y = batch
x, y = x.to(device), y.to(device)
optimizer.zero_grad()
output = model(x)
loss = criterion(output, y)
loss.backward()
optimizer.step()
# 计算训练准确率
_, predicted = torch.max(output, 1)
train_total += y.size(0)
train_correct += (predicted == y).sum().item()
if iter % 40 == 0:
print(
f"Epoch [{epoch}/{run.config.num_epochs}], Iteration [{iter + 1}/{len(train_loader)}], Loss: {loss.item()}"
)
swanlab.log({"train/loss": loss.item()}, step=(epoch - 1) * len(train_loader) + iter)
# 记录每个epoch的训练准确率
train_accuracy = train_correct / train_total
swanlab.log({"train/acc": train_accuracy}, step=(epoch - 1) * len(train_loader) + iter)
#
model.eval()
correct = 0
total = 0
val_loss = 0
with torch.no_grad():
for batch in val_loader:
x, y = batch
x, y = x.to(device), y.to(device)
output = model(x)
# 计算验证损失
loss = criterion(output, y)
val_loss += loss.item()
# 计算验证准确率
_, predicted = torch.max(output, 1)
total += y.size(0)
correct += (predicted == y).sum().item()
accuracy = correct / total
avg_val_loss = val_loss / len(val_loader)
swanlab.log({
"val/acc": accuracy,
"val/loss": avg_val_loss,
}, step=(epoch - 1) * len(train_loader) + iter)切换其他ResNet模型
上面的代码支持切换以下ResNet模型：
- ResNet18
- ResNet34
- ResNet50
- ResNet101
- ResNet152
切换方式非常简单，只需要将config的model参数修改为对应的模型名称即可，如切换为ResNet50：
python
# 初始化swanlab
run = swanlab.init(
...
config={
"model": "Resnet50",
...
},
)config是如何发挥作用的？ 👉 设置实验配置

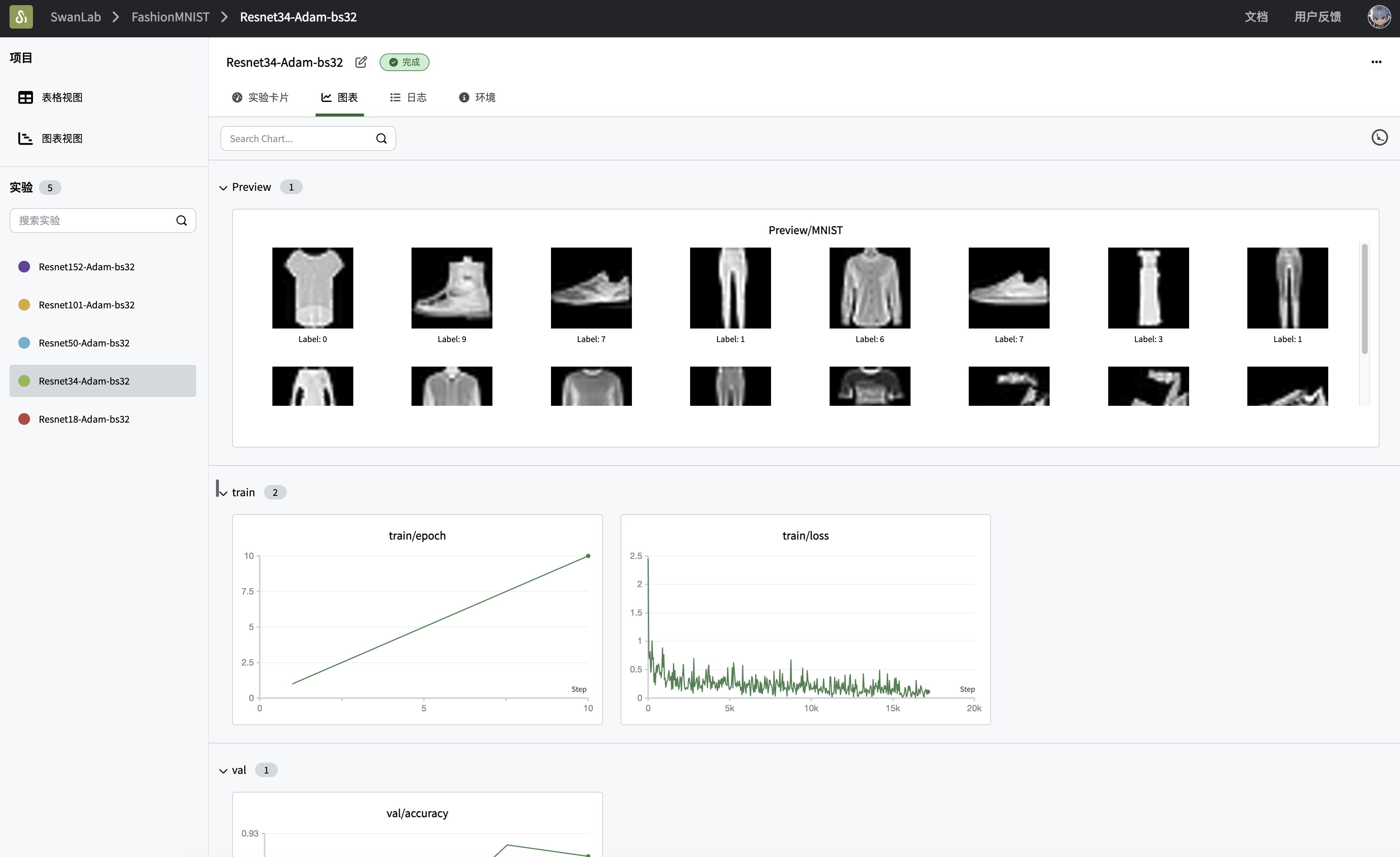

效果演示
