Crafting Your Custom Plugin

We are thrilled to announce that starting from swanlab>=0.5.0, we have officially entered the era of plugins!

Plugins have been a topic of discussion since the inception of SwanLab. They not only enhance the functionality and openness of SwanLab but also offer a fresh perspective on what SwanLab can be —

SwanLab is not just a training tracking tool and experiment management platform; it can also serve as the data core during the training process (much like the Chrome core). The functions swanlab.init and swanlab.log take on new meanings.


We have defined three types of plugin modes for SwanLab:

  • Python Library Plugin: Callback classes within the SwanLab Python library. Plugins are implemented by injecting code into SwanLab's lifecycle stages (e.g., on_init, on_run, on_stop, etc.).
  • Open API Plugin: Plugins that leverage SwanLab's open APIs, combining API calls to achieve desired functionality.
  • GUI Plugin: Plugins that utilize SwanLab's open frontend APIs to customize charts, tables, and other components.

👋 Current Support

Currently, we support the Python Library Plugin type. Below, we will focus on how to create your own Python Library Plugin.

Understanding the SwanKitCallback Class

Repository: swanlab-toolkit

The SwanKitCallback class is SwanLab's callback class. All plugins must inherit from this class.

python
from swankit.callback import SwanKitCallback

The SwanKitCallback class defines all of SwanLab's lifecycle stages. You only need to override the lifecycle stages that interest you:

Common lifecycle stages include:

  • on_init: Initialization stage, called when swanlab.init is executed.
  • before_init_experiment: Called before initializing SwanLabRun.
  • on_run: Called when SwanLabRun is fully initialized.
  • on_log: Called every time swanlab.log is executed.
  • on_stop: Stop stage, called when SwanLab stops.

For more lifecycle stages, refer to: SwanKitCallback

Implementing a Simple Plugin

Let's walk through an example to demonstrate how to implement a plugin.

python
class MyPlugin(SwanKitCallback):
    def on_init(self, proj_name: str, workspace: str, logdir: str = None, *args, **kwargs):
        print(f"Plugin Initialized: {proj_name} {workspace} {logdir}")

    def on_stop(self, error: str = None, *args, **kwargs):
        print(f"Plugin Stopped: {error}")

    def __str__(self):
        return "MyPlugin"

This plugin is quite simple: it prints a message when swanlab.init() is called and another message when the process stops or swanlab.finish() is called.

Using this plugin in SwanLab is straightforward. Just pass an instance of the plugin to the callbacks parameter in swanlab.init().

python
from swankit.callback import SwanKitCallback
import swanlab

class MyPlugin(SwanKitCallback):
    def on_init(self, proj_name: str, workspace: str, logdir: str = None, *args, **kwargs):
        print(f"Plugin Initialized: {proj_name} {workspace} {logdir}")

    def on_stop(self, error: str = None, *args, **kwargs):
        print(f"Plugin Stopped: {error}")

    def __str__(self):
        return "MyPlugin"

my_plugin = MyPlugin()

swanlab.init(callbacks=[my_plugin])

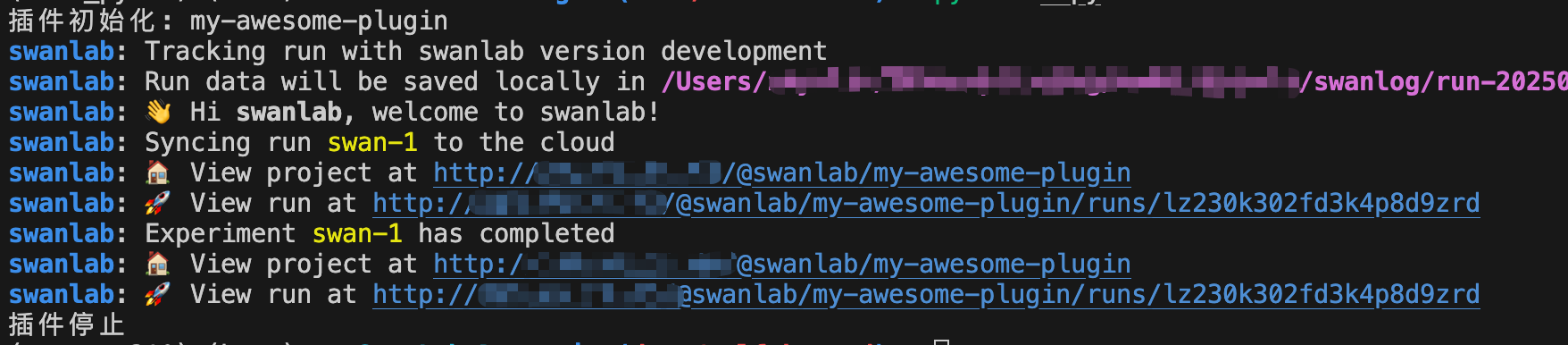

Executing the above code will display the following in the console:


Example: Metric Printing and Alerting

Let's implement a plugin that prints metrics and sends an alert when the acc metric exceeds 0.9.

1. Defining the Plugin

The SwanKitCallback class defines the on_log method, which is called every time swanlab.log is executed.

python
class ThresholdPlugin(SwanKitCallback):
    def __init__(self, key: str, threshold: float = 0.9):
        self.key = key
        self.threshold = threshold

    def on_log(self, data: dict, step: Optional[int] = None, *args, **kwargs):
        print(f"data: {data} step: {step}")
        if data[self.key] > self.threshold:
            print(f"{self.key} > {self.threshold} !!")

2. Using the Plugin

python
from swankit.callback import SwanKitCallback
from typing import Optional
import swanlab
import random

class ThresholdPlugin(SwanKitCallback):
    def __init__(self, key: str, threshold: float = 0.9):
        self.key = key
        self.threshold = threshold

    def on_log(self, data: dict, step: Optional[int] = None, *args, **kwargs):
        print(f"data: {data} step: {step}")
        if data[self.key] > self.threshold:
            print(f"{self.key} > {self.threshold} !!")

    def __str__(self):
        return "ThresholdPlugin"

threshold_plugin = ThresholdPlugin(key="acc", threshold=0.9)
swanlab.init(callbacks=[threshold_plugin])

# Simulating a training session
epochs = 10
offset = random.random() / 5
for epoch in range(2, epochs):
  acc = 1 - 2 ** -epoch - random.random() / epoch - offset
  loss = 2 ** -epoch + random.random() / epoch + offset

  # Logging training metrics
  swanlab.log({"acc": acc, "loss": loss}, step=epoch)

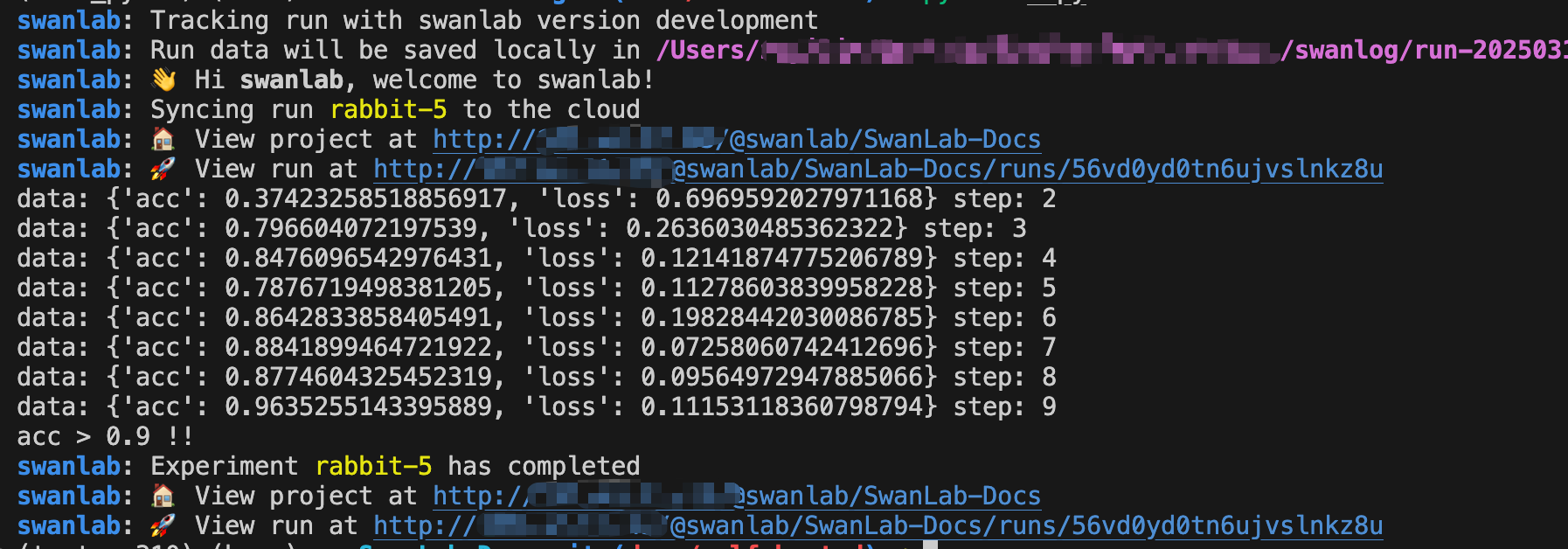

Executing the above code will display the following in the console:


Learn More About Plugins

  • EmailCallback: Sends an email when training completes or an error occurs.
  • LarkCallback: Sends a message to Lark when training completes or an error occurs.
