Appearance

Verl ​

Verl is a flexible, efficient, and production-ready reinforcement learning (RL) training framework designed for post-training of large language models (LLMs). It is open-sourced by the ByteDance Volcano Engine team and serves as the open-source implementation of the HybridFlow paper.

verl_logo

verl is flexible and easy to use with:

  • Easy extension of diverse RL algorithms: The Hybrid programming model combines the strengths of single-controller and multi-controller paradigms to enable flexible representation and efficient execution of complex Post-Training dataflows. Allowing users to build RL dataflows in a few lines of code.

  • Seamless integration of existing LLM infra with modular APIs: Decouples computation and data dependencies, enabling seamless integration with existing LLM frameworks, such as PyTorch FSDP, Megatron-LM and vLLM. Moreover, users can easily extend to other LLM training and inference frameworks.

  • Flexible device mapping and parallelism: Supports various placement of models onto different sets of GPUs for efficient resource utilization and scalability across different cluster sizes.

Readily integration with popular HuggingFace models

verl is fast with:

  • State-of-the-art throughput: By seamlessly integrating existing SOTA LLM training and inference frameworks, verl achieves high generation and training throughput.

  • Efficient actor model resharding with 3D-HybridEngine: Eliminates memory redundancy and significantly reduces communication overhead during transitions between training and generation phases.

For more information, refer to the following links:

You can use Verl to quickly conduct large-scale model reinforcement learning training while using SwanLab for experiment tracking and visualization.

Environment Setup ​

Required Environment:

  • Python: Version >= 3.9

  • CUDA: Version >= 12.1

Refer to the Verl official documentation for installation: https://verl.readthedocs.io/en/latest/start/install.html

Additionally, SwanLab needs to be installed:

bash
pip install -U swanlab

Usage ​

Take the example from the Verl official documentation: Post-train a LLM using PPO with GSM8K dataset.

You only need to add trainer.logger=['swanlab'] to the experiment's launch command to choose SwanLab for experiment tracking.

The complete test command is as follows:

bash
PYTHONUNBUFFERED=1 python3 -m verl.trainer.main_ppo \
 data.train_files=$HOME/data/gsm8k/train.parquet \
 data.val_files=$HOME/data/gsm8k/test.parquet \
 data.train_batch_size=256 \
 data.val_batch_size=1312 \
 data.max_prompt_length=512 \
 data.max_response_length=256 \
 actor_rollout_ref.model.path=Qwen/Qwen2.5-0.5B-Instruct \
 actor_rollout_ref.actor.optim.lr=1e-6 \
 actor_rollout_ref.actor.ppo_mini_batch_size=64 \
 actor_rollout_ref.actor.ppo_micro_batch_size_per_gpu=4 \
 actor_rollout_ref.rollout.log_prob_micro_batch_size_per_gpu=8 \
 actor_rollout_ref.rollout.tensor_model_parallel_size=1 \
 actor_rollout_ref.rollout.gpu_memory_utilization=0.4 \
 actor_rollout_ref.ref.log_prob_micro_batch_size_per_gpu=4 \
 critic.optim.lr=1e-5 \
 critic.model.path=Qwen/Qwen2.5-0.5B-Instruct \
 critic.ppo_micro_batch_size_per_gpu=4 \
 algorithm.kl_ctrl.kl_coef=0.001 \
 trainer.logger=['console','swanlab'] \
 +trainer.val_before_train=False \
 trainer.default_hdfs_dir=null \
 trainer.n_gpus_per_node=1 \
 trainer.nnodes=1 \
 trainer.save_freq=10 \
 trainer.test_freq=10 \
 trainer.total_epochs=15 2>&1 | tee verl_demo.log

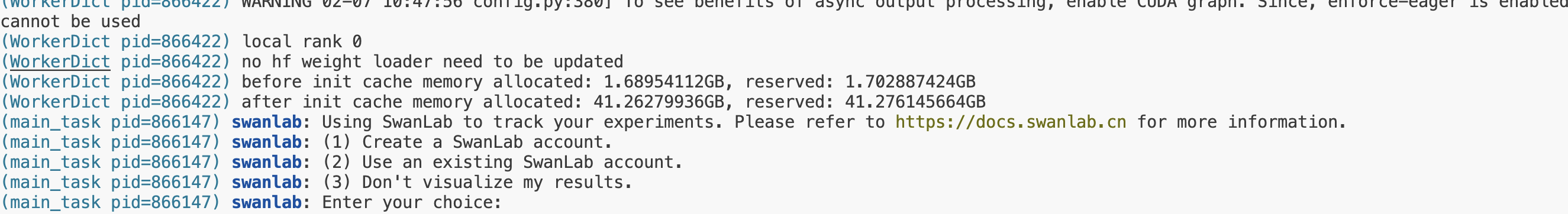

If you are not logged into SwanLab when starting the training, the following prompt will appear.

select

Selecting 1 or 2 will enable cloud tracking mode. Follow the prompts to input the API from the official website to enable online tracking. You can view the training tracking results online. Selecting 3 will not upload training data and will use offline tracking.

Alternatively, you can log in or set the tracking mode via environment variables:

bash
export SWANLAB_API_KEY=<Your API Key>           # Set the API for online tracking mode
export SWANLAB_LOG_DIR=<Set local log storage path>    # Set the local log storage path
export SWANLAB_MODE=<Set SwanLab's running mode>     # Includes four modes: cloud (default), cloud-only (only cloud tracking, no local file saving), local (local tracking mode), and disabled (no logging, used for debugging)

Viewing Training Logs ​

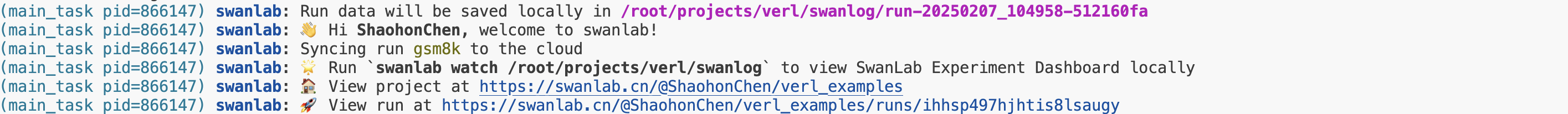

After logging in, the following login information will be displayed:

track

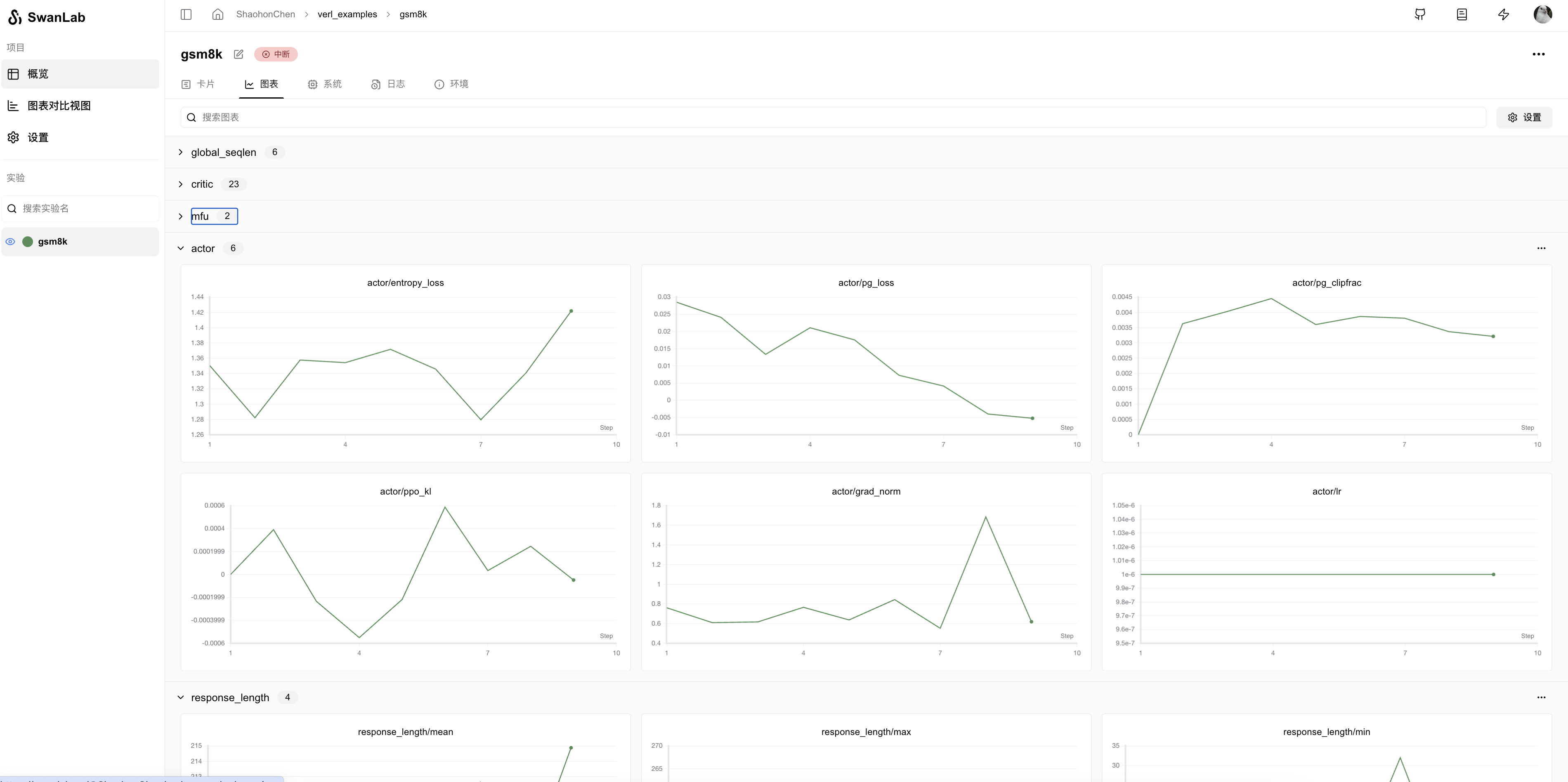

Run the process, and you can view the training logs on the SwanLab official website.

remote

For more usage methods, refer to SwanLab Viewing Results.

If you are using the local dashboard mode, you can open the local dashboard with the following command:

bash
swanlab watch

For more details, refer to SwanLab Offline Dashboard Mode.

To set the port number on the server, refer to Offline Dashboard Port Number.
