swanlab.OpenApi

Based on SwanLab's cloud capabilities, the SDK provides access to Open API functionality, allowing users to programmatically operate and retrieve resources related to experiments, projects, and workspaces in the cloud environment from their local environment.

Through Open API, users can:

Retrieve personal information, workspace details, and project lists
Automatically manage experiments (e.g., querying, organizing, editing metadata, etc.)
More easily integrate with other tools (e.g., CI/CD, experiment scheduling, etc.)

Making good use of this feature greatly enhances the flexibility and extensibility of the SDK, making it convenient to build advanced workflows or extended systems.

Introduction

Prerequisite: You need to have logged into your SwanLab account in your programming environment.

To use SwanLab's Open API, simply instantiate an OpenApi object.

python

from swanlab import OpenApi

my_api = OpenApi() # Uses local login information
print(my_api.list_workspaces().data) # Get the list of workspaces for the current user

If you need to access data from another account:

python

from swanlab import OpenApi

other_api = OpenApi(api_key='other_api_key') # Use another account's api_key
print(other_api.list_workspaces().data)

Specifically, the OpenApi authentication logic is as follows:

If the api_key parameter is explicitly provided, it will be used for authentication. You can find your API key here.
Otherwise, local authentication information will be used.

Common Parameters

Experiment ID `exp_id`

The unique identifier for an experiment is the CUID, i.e., exp_id, which can be obtained via the list_experiments method's cuid field.

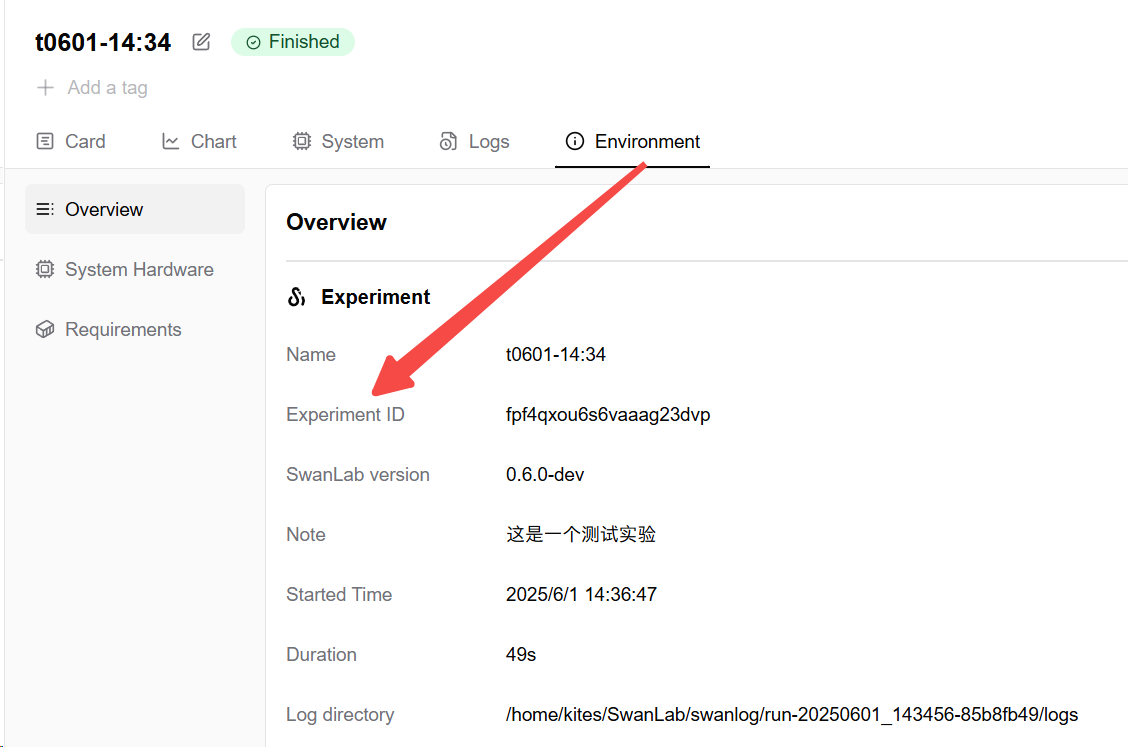

To view the CUID of a specific experiment, go to the "Environment" tab of the experiment on the web version and check the "Experiment ID" row. Click to copy the CUID.

Workspace Name `username`

The workspace name is username, used to identify the workspace:

For a personal workspace, username is the user's username.
For an organization workspace, username is the organization ID.

You can get the username via the list_workspaces method; the username field in each workspace entry is the workspace name.

Generally, if you do not specify username in OpenAPI calls, it defaults to your personal workspace.

Model Definitions

When using Open API, some cloud resources, such as experiments and projects, are too complex to be a Python based data structure.

Therefore, these resources are defined as objects in the SDK, supporting IDE auto-completion and type checking for easier manipulation.

For example, to retrieve the start time of an experiment object, you can use:

python

api_response: ApiResponse = my_api.get_experiment(project="project1", exp_cuid="cuid1")
my_exp: Experiment = api_response.data
created_time: str = my_exp.createdAt

Or, to retrieve the name of the workspace to which a project object belongs, you can use:

python

api_response: ApiResponse = my_api.list_projects()
my_project: Project = api_response.data[0]
workspace_name: str = my_project.group["name"]

As a Model, its attributes can be accessed in three ways:

my_exp.createdAt
my_exp["createdAt"]
my_exp.get("createdAt")

Note: The model can be accessed in a dictionary-like manner, but it is not a true dictionary. You can obtain the corresponding dictionary of the model using my_exp_dict: Dict = my_exp.model_dump().

API Response `ApiResponse`

Each Open API method returns a swanlab.api.openapi.types.ApiResponse object, which contains the following fields:

Field	Type	Description
`code`	`int`	HTTP status code
`errmsg`	`str`	Error message, non-empty if the status code is not `2XX`
`data`	`Any`	Specific data returned, as mentioned in the API descriptions below

Experiment Model

The experiment object is of type swanlab.api.openapi.types.Experiment, containing the following fields:

Field	Type	Description
`cuid`	`str`	Unique identifier for the experiment
`name`	`str`	Name of the experiment
`description`	`str`	Description of the experiment
`state`	`str`	Status of the experiment, such as `FINISHED`, `RUNNING`
`show`	`bool`	Display status
`createdAt`	`str`	Time of experiment creation, formatted as `2024-11-23T12:28:04.286Z`
`finishedAt`	`str`	Time of experiment completion, formatted as `2024-11-23T12:28:04.286Z`, None if not finished
`user`	`Dict[str, str]`	Creator of the experiment, containing `username` and `name`
`profile`	`dict`	Detailed configuration information of the experiment, including user-defined configurations and Python runtime environment, etc.

Project Model

The project object is of type swanlab.api.openapi.types.Project, containing the following fields:

Field	Type	Description
`cuid`	`str`	Unique identifier for the project
`name`	`str`	Name of the project
`description`	`str`	Description of the project
`visibility`	`str`	Visibility, such as `PUBLIC` or `PRIVATE`
`createdAt`	`str`	Time of project creation, formatted as `2024-11-23T12:28:04.286Z`
`updatedAt`	`str`	Time of project update, formatted as `2024-11-23T12:28:04.286Z`
`group`	`Dict[str, str]`	Workspace information, containing `type`, `username`, and `name`
`count`	`Dict[str, int]`	Project statistics, such as the number of experiments, number of collaborators, etc.

OpenAPIs

Each Open API is a method of the OpenApi object.

Below is a list of all available SwanLab Open APIs.

Workspaces

`list_workspaces`

Retrieve the list of all workspaces (organizations) associated with the current user.

Returns

data (List[Dict]): A list of workspaces the user has joined. Each element is a dictionary containing basic workspace information:

Field	Type	Description
`name`	`str`	Name of the workspace
`username`	`str`	Unique identifier for the workspace (used in URLs)
`role`	`str`	Role of the user in this workspace, such as `OWNER` or `MEMBER`

Example

Retrieve the list of workspacesRetrieve the name of the first workspaceRetrieve the response code

python

from swanlab import OpenApi
my_api = OpenApi()

my_api.list_workspaces().data
"""
[
    {
        "name": "workspace1",
        "username": "kites-test3",
        "role": "OWNER"
    },
    {
        "name": "hello-openapi",
        "username": "kites-test2",
        "role": "MEMBER"
    }
]
"""

python

from swanlab import OpenApi
my_api = OpenApi()

my_api.list_workspaces().data[0]["name"]
"""
"workspace1"
"""

python

from swanlab import OpenApi
my_api = OpenApi()

my_api.list_workspaces().code
"""
200
"""

Experiments

`list_experiments`

Retrieve the list of experiments in a specified project.

Method Parameters

Parameter	Type	Description
`project`	`str`	Project name
`username`	`str`	Username of the workspace, defaults to the current user

Returns

data (List[Experiment]): Returns a list of Experiment objects.

Example

Retrieve the list of experimentsRetrieve the CUID of the first experimentRetrieve the name of the first experiment

python

my_api.list_experiments(project="project1").data
"""
[
    {
        "cuid": "cuid1",
        "name": "experiment1",
        "description": "Description 1",
        "state": "RUNNING",
        "show": true,
        "createdAt": "2024-11-23T12:28:04.286Z",
        "finishedAt": null,
        "user": {
            "username": "kites-test3",
            "name": "Kites Test"
        },
        "profile": {
            "config": {
                "lr": 0.001,
                "epochs": 10
            }
        }
    },
    ...
]
"""

python

my_api.list_experiments(project="project1").data[0].cuid
"""
"cuid1"
"""

python

my_api.list_experiments(project="project1").data[0].name
"""
"experiment1"
"""

`get_experiment`

Retrieve the information of an experiment.

Method Parameters

Parameter	Type	Description
`project`	`str`	Project name
`exp_id`	`str`	Unique identifier for the experiment (CUID), can be obtained via `list_experiments` or from the "Environment" tab on the web
`username`	`str`	Username of the workspace, defaults to the current user

Returns

data (Experiment): Returns an Experiment object containing detailed information about the experiment.

Example

Retrieve the information of an experimentRetrieve the status of the experimentRetrieve the creator's username

python

my_api.get_experiment(project="project1", exp_id="cuid1").data
"""
{
    "cuid": "cuid1",
    "name": "experiment1",
    "description": "This is a test experiment",
    "state": "FINISHED",
    "show": true,
    "createdAt": "2024-11-23T12:28:04.286Z",
    "finishedAt": "2024-11-25T15:56:48.123Z",
    "user": {
        "username": "kites-test3",
        "name": "Kites Test"
    },
    "profile": {
        "conda": "...",
        "requirements": "...",
        ...
    }
}
"""

python

my_api.get_experiment(project="project1", exp_id="cuid1").data.state
"""
"FINISHED"
"""

python

my_api.get_experiment(project="project1", exp_id="cuid1").data.user["username"]
"""
"kites-test3"
"""

`get_summary`

Retrieve the summary information of an experiment, including the final value and min/max of tracked metrics and their corresponding steps.

Method Parameters

Parameter	Type	Description
`project`	`str`	Project name
`exp_id`	`str`	Experiment CUID, unique identifier, can be obtained via `list_experiments` or from the "Environment" tab on the web
`username`	`str`	Username of the workspace, defaults to the current user

Returns

data (Dict[str, Dict]): Returns a dictionary containing the summary information of the experiment.

Each key in the dictionary is a metric name, and the value is a dictionary with the following structure:

Field	Type	Description
`step`	`int`	Last step
`value`	`float`	Metric value at the last step
`min`	`Dict[str, float]`	Step and value for the minimum
`max`	`Dict[str, float]`	Step and value for the maximum

Example

Retrieve experiment summary informationRetrieve the max value of a metricRetrieve the step of the min value of a metric

python

my_api.get_summary(project="project1", exp_id="cuid1").data
"""
{
    "loss": {
        "step": 47,
        "value": 0.1907215012216071,
        "min": {
            "step": 33,
            "value": 0.1745886406861026
        },
        "max": {
            "step": 0,
            "value": 0.7108771095136294
        }
    },
    ...
}
"""

python

my_api.get_summary(project="project1", exp_id="cuid1").data["loss"]["max"]["value"]
"""
0.7108771095136294
"""

python

my_api.get_summary(project="project1", exp_id="cuid1").data["loss"]["min"]["step"]
"""
33
"""

Projects

`list_projects`

Retrieve the list of projects in a specified workspace.

Method Parameters

Parameter	Type	Description
`username`	`str`	Username of the workspace, defaults to the current user
`detail`	`bool`	Whether to include project statistics, defaults to True

Returns

data (List[Project]): Returns a list of Project objects.

Example

Retrieve the list of projects

python

my_api.list_projects().data
"""
[
    {
        "cuid": "project1",
        "name": "Project 1",
        "description": "Description 1",
        "visibility": "PUBLIC",
        "createdAt": "2024-11-23T12:28:04.286Z",
        "updatedAt": null,
        "group": {
            "type": "PERSON",
            "username": "kites-test3",
            "name": "Kites Test"
        },
        "count": {
            "experiments": 4,
            "contributors": 1,
            "children": 0,
            "runningExps": 0
        }
    },
    ...
]
"""
