Qwen2.5 Reproduction of DeepSeek-R1-ZERO

Introduction

This document aims to reproduce the deepseek-r1-zero experiment, briefly introducing the entire process from the principles of R1 to code implementation and result observation. The experiment process is monitored using SwanLab to ensure precise tracking and debugging at each stage. Through this series of experimental steps, one can master the implementation method of GRPO.


Reference Materials

This experiment references the excellent open-source project philschmid/deep-learning-pytorch-huggingface, authored by Google DeepMind engineer Philipp Schmid. The idea of using Countdown for R1 training originated from this project.

Model Address: Qwen2.5-3B-Instruct: HuggingFace Community | ModelScope Community

Dataset Address: Countdown-Tasks-3to4: HuggingFace | ModelScope

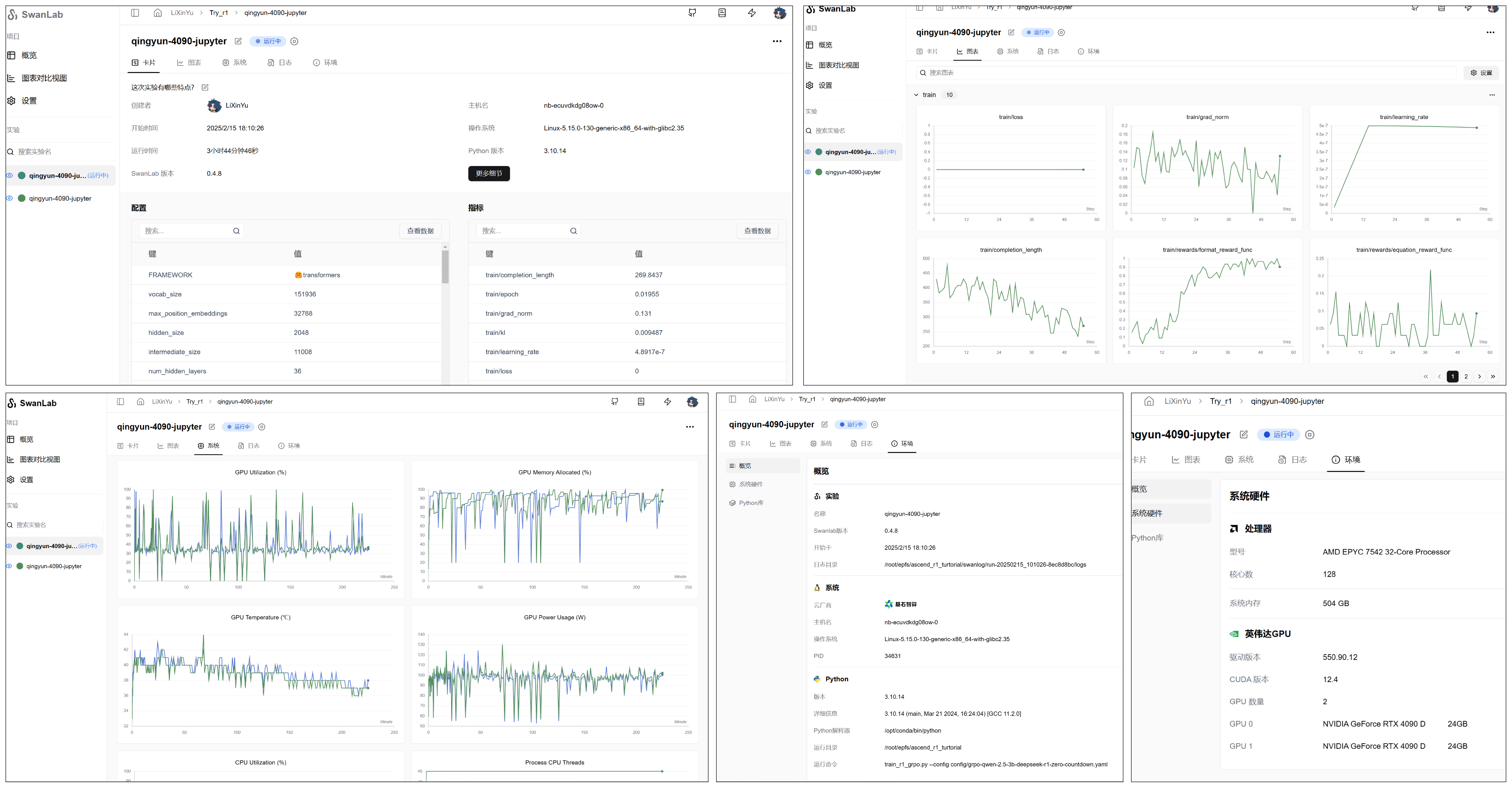

Visualization Tool SwanLab Project Address: SwanLab Result Visualization


DeepSeek-R1 Principles

Paper Title: DeepSeek-R1: Incentivizing Reasoning Capability in LLMs via Reinforcement Learning

Paper Link: Paper Link

Code Address: GitHub Link

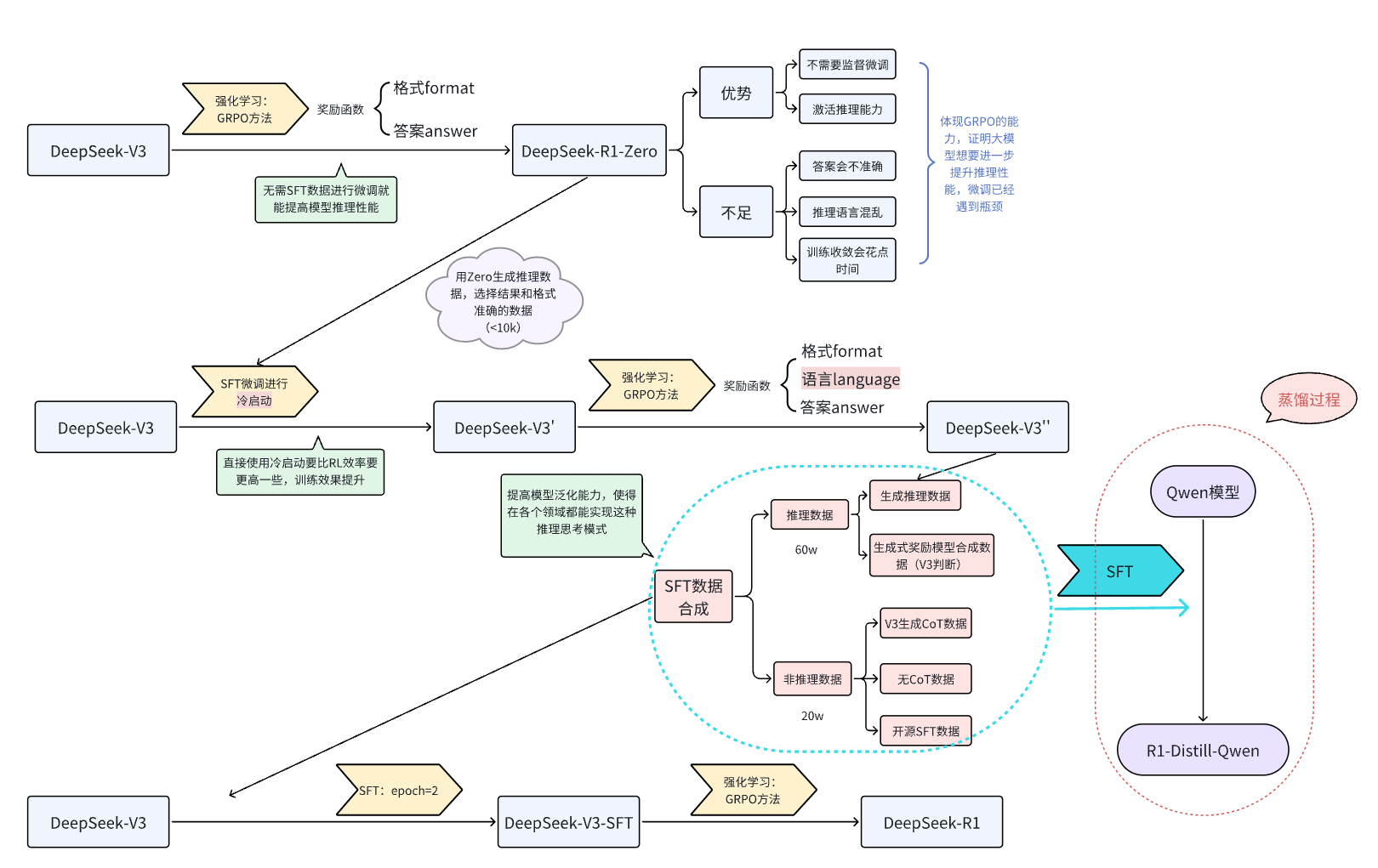

Below is the flowchart representation from DeepSeek-V3 to DeepSeek-R1 in the paper.

This tutorial only considers the reproduction process from DeepSeek-V3 → DeepSeek-R1-Zero, implemented based on the Qwen2.5-3B-Instruct model.

GRPO Principles:

Group Relative Policy Optimization (GRPO) is a reinforcement learning (RL) algorithm specifically designed to enhance reasoning capabilities in large language models (LLMs). Unlike traditional RL methods that heavily rely on external evaluation models (value functions) to guide learning, GRPO optimizes the model by evaluating groups of responses relative to each other. This approach improves training efficiency, making GRPO an ideal choice for reasoning tasks requiring complex problem-solving and long-chain thinking.

The essence of GRPO: By generating multiple responses to the same question and performing "relative comparisons" among them, it replaces the "value model" in traditional PPO.

Traditional reinforcement learning algorithms (such as Proximal Policy Optimization, PPO) face significant challenges when applied to reasoning tasks in LLMs:

  1. Dependence on critic models:
    PPO requires an independent critic model to evaluate the value of each response, doubling memory and computational requirements.
    Training critic models is highly complex and error-prone, especially for tasks requiring subjective or nuanced evaluations.

  2. High computational costs:
    RL workflows typically require substantial computational resources to iteratively evaluate and optimize responses.
    Scaling these methods to larger LLMs further exacerbates costs.

  3. Scalability issues:
    Absolute reward evaluation struggles with diverse tasks, making generalization across reasoning domains difficult.


How GRPO addresses these challenges:

  1. Critic-free optimization:
    GRPO eliminates the need for critic models by comparing responses within groups, significantly reducing computational overhead.

  2. Relative evaluation:
    Instead of relying on external evaluators, GRPO leverages group dynamics to assess the relative performance of each response within the same batch.

  3. Efficient training:
    By focusing on group advantages, GRPO simplifies the reward estimation process, making training faster and more scalable for large models.

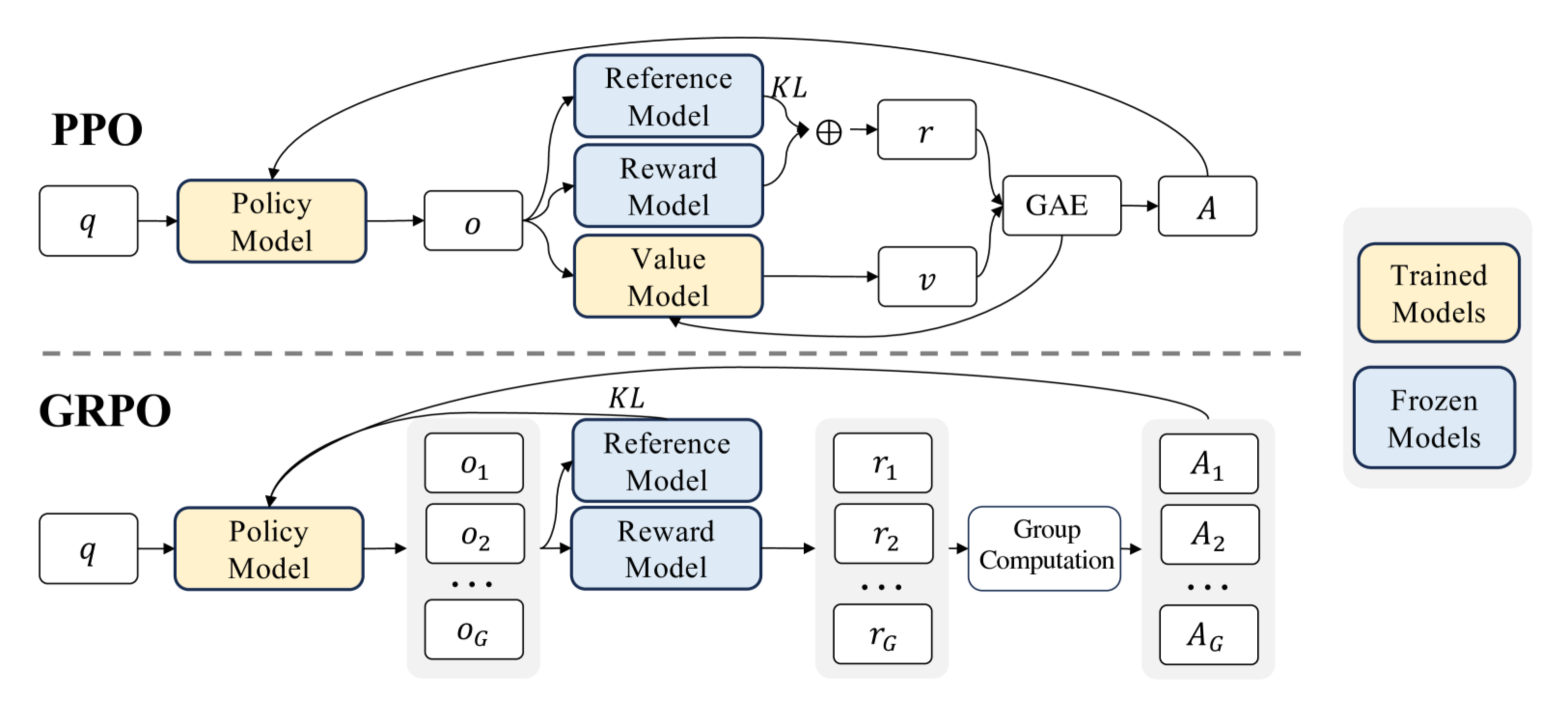

The figure below compares PPO and GRPO. GRPO abandons the value model and estimates from group scores, significantly reducing training resources.

grpo

One author likened GRPO to a teacher guiding students in a classroom. The teacher asks a group of students to solve a problem together.
Instead of grading each student individually, the teacher encourages students to compare their answers within the group. Better-performing students receive encouragement, while others learn from mistakes. Over time, the entire group improves, becoming more accurate and consistent. GRPO applies this principle to training AI models, enabling efficient learning.


Experimental Code

1. Environment Setup

Environment settings:

bash
pip install transformers==4.48.1
pip install peft==0.14.0
conda install pytorch==2.4.0 torchvision==0.19.0 torchaudio==2.4.0 -c pytorch
pip install datasets
pip install accelerate
pip install trl
pip install -U swanlab
pip install deepspeed

2. Data Preprocessing

This experiment uses a Countdown dataset with 490K entries. The dataset contains two fields: target (result data) and nums (combination data). The goal is to train the model to think about how to derive target from nums using +, -, *, and /.

To better activate the model's reasoning ability, we set a prompt template to ensure the model responds in the following format:

text
<think>:
Let’s think about this step by step...
</think>

<answer>
...
</answer>

Additionally, since each model has its own training format template (e.g., Qwen's template is in tokenizer_config.json in its weight files), we use tokenizer.apply_chat_template to format the data correctly.

python
### Mimic R1's prompt format to process the dataset, ensuring GRPO data includes reasoning steps.
def generate_r1_prompt(question: str, target: str):
    """
    Activate Qwen's reasoning process.
    :param question: Dataset question for Qwen to think about.
    :param target: Dataset answer.
    :return: Formatted prompt.
    """
    r1_prefix = [
        {
            "role": "user",
            "content": f"Now there's a math problem: {question}, and the answer is {target}. You need to think about the reasoning process to arrive at the correct answer. Show your reasoning steps between <think> and </think> tags, and provide the final answer between <answer> and </answer> tags, e.g., <answer>19</answer>. Start step-by-step thinking after the <think> tag."
        },
        {
            "role": "assistant",
            "content": "Let's solve this step by step.\n<think>"
        }
    ]
    # `apply_chat_template` applies Qwen's chat_template from tokenizer_config.json.
    return {
        "prompt": tokenizer.apply_chat_template(r1_prefix, tokenize=False, continue_final_message=True),
        "question": question,
        "target": target
    }

### Convert the dataset to R1 Countdown prompt format.
def train_dataset_process(train_data_path: str):
    dataset = read_jsonl_to_dataset(train_data_path)
    dataset = dataset.map(lambda x: generate_r1_prompt(x["sni_text"], x["ans"]))

    train_test_split = dataset.train_test_split(test_size=0.1)
    train_dataset = train_test_split["train"]
    test_dataset = train_test_split["test"]

    return {
        "train_dataset": train_dataset,
        "test_dataset": test_dataset
    }

❗Note: generate_r1_prompt must return a dictionary containing the question and answer. The map method will populate the actual question and answer into the prompt.

3. Reward Function Setup

In reinforcement learning, the reward function is the core signal guiding the agent's behavior. It provides immediate feedback to evaluate actions and influences future decisions.

This experiment only sets reward functions for output format (format) and final answer (answer), continuously correcting format and answer outputs.

Format Reward Function

python
### Format reward function: Checks if the output matches `<think>...</think><answer>...</answer>`.
def format_reward_func(completions, **kwargs):
    rewards = []
    for completion in completions:
        try:
            completion = "<think>" + completion
            if random.random() < 0.1:  # Log 1% of outputs for debugging.
                os.makedirs("completion_samples", exist_ok=True)
                with open("completion_samples/completion_samples.txt", "a") as f:
                    f.write(f"\n\n==============\n{completion}")

            regex = r"^<think>([^<]*(?:<(?!/?think>)[^<]*)*)<\/think>\n<answer>([\s\S]*?)<\/answer>$"
            match = re.search(regex, completion, re.DOTALL)
            rewards.append(1.0 if match and len(match.groups()) == 2 else 0.0)
        except Exception:
            rewards.append(0.0)
    return rewards

Answer Reward Function

python
### Answer reward function: Checks if the equation is correct and uses numbers properly.
def equation_reward_func(completions, target, nums, **kwargs):
    rewards = []
    for completion, gt, numbers in zip(completions, target, nums):
        try:
            completion = "<think>" + completion
            match = re.search(r"<answer>(.*?)<\/answer>", completion)
            if not match:
                rewards.append(0.0)
                continue

            equation = match.group(1).strip()
            used_numbers = [int(n) for n in re.findall(r"\d+", equation)]

            # Check if numbers are used exactly once.
            if sorted(used_numbers) != sorted(numbers):
                rewards.append(0.0)
                continue

            # Allow only digits, operators, parentheses, and whitespace.
            allowed_pattern = r"^[\d+\-*/().\s]+$"
            if not re.match(allowed_pattern, equation):
                rewards.append(0.0)
                continue

            # Evaluate the equation.
            result = eval(equation, {"__builtins__": None}, {})
            if abs(float(result) - float(gt)) < 1e-5:
                rewards.append(1.0)
                if random.random() < 0.10:  # Log 10% of successful outputs.
                    os.makedirs("completion_samples", exist_ok=True)
                    with open("completion_samples/success_samples.txt", "a") as f:
                        f.write(f"\n\n==============\n{completion}")
            else:
                rewards.append(0.0)
        except Exception:
            rewards.append(0.0)
    return rewards

Additional Notes: You can also set reward functions for reasoning length and linguistic consistency to improve model performance.

4. Model Parameter Setup

python
# Model configuration.
model_config = ModelConfig(
    model_name_or_path=model_path,
    torch_dtype="bfloat16",
    # attn_implementation="flash_attention_2",  # Optional: Optimizes memory and speed.
    use_peft=True,
    load_in_4bit=True
)

attn_implementation: Using flash_attention_2 optimizes memory usage and speeds up computation, especially for large models. If enabled, it reduces memory consumption and accelerates training, particularly on multi-GPU setups. If disabled, performance and memory efficiency may suffer.

5. Training Parameter Setup

python
# Training arguments.
training_args = GRPOConfig(
    output_dir="/root/test/outputs",
    learning_rate=5e-7,
    lr_scheduler_type="cosine",
    logging_steps=2,
    max_steps=200,
    per_device_train_batch_size=1,
    gradient_checkpointing=False,
    gradient_accumulation_steps=8,
    gradient_checkpointing_kwargs={"use_reentrant": False},
    bf16=True,
    save_steps=50,
    # GRPO-specific parameters.
    max_prompt_length=256,
    max_completion_length=1024,
    num_generations=2,
    beta=0.001,
    # vLLM acceleration (disabled for this experiment).
    use_vllm=False,
    vllm_device="cuda:1",
    vllm_gpu_memory_utilization=0.8
)

vLLM is a library for accelerating inference, optimizing memory usage and computational performance on GPUs. Enabling use_vllm=True can speed up computation during inference through efficient memory management and multi-device parallelism, especially for large language models. It also allows specifying acceleration devices via vllm_device (e.g., cuda:1).

⚠️Note:

We use the trl library for GRPO, which currently has a minor bug: gradient_checkpointing and vllm must both be True or False. Otherwise, an error occurs. Both parameters reduce memory usage and improve training/inference speed, so their settings can be adjusted by practitioners.

6. Visualization Tool Setup

python
# SwanLab configuration.
swanlab_callback = SwanLabCallback(
    workspace=None,  # Project is private.
    project="DeepSeek-R1-zero",
    experiment_name="4090-grpo",
)

7. Train and Save the Model

python
# Trainer configuration.
trainer = GRPOTrainer(
    model=model_config.model_name_or_path,
    reward_funcs=[format_reward_func, answer_reward_func],
    args=training_args,
    train_dataset=train_dataset,
    eval_dataset=test_dataset,
    peft_config=get_peft_config(model_config),
    callbacks=[swanlab_callback]
)

trainer.train()
trainer.save_model(training_args.output_dir)

Full Process Code

To manage distributed training environments, RL hyperparameters, and the main training function systematically, we recommend using YAML configuration files and Python scripts.

Project Structure:

root/project/
├── data/
│   └── zouxuhong___countdown-tasks-3to4
├── models/
│   ├── Qwen
│   │   └── Qwen2___5-3B-Instruct
├── config/
│   ├── 2rtx4090.yaml
│   └── grpo-qwen-2.5-3b-deepseek-r1-zero-countdown.yaml
├── train_r1_grpo.py
└── train_r1_grpo.sh

1. Accelerate Configuration (for distributed training on 2 GPUs)
Create deepspeed_zero3.yaml:

yaml
compute_environment: LOCAL_MACHINE
debug: false
deepspeed_config:
  gradient_accumulation_steps: 8
  gradient_clipping: 1.0
  offload_optimizer_device: cpu  # Offload optimizer to CPU to save GPU memory.
  offload_param_device: cpu      # Offload model params to CPU.
  zero3_init_flag: false
  zero3_save_16bit_model: true
  zero_stage: 3
distributed_type: DEEPSPEED
downcast_bf16: 'no'
machine_rank: 0
main_training_function: main
mixed_precision: bf16
num_machines: 1
num_processes: 2

⚠️Note:
Since this experiment has limited resources, we offload the optimizer and model parameters to the CPU to reduce GPU memory pressure.

2. Training Hyperparameters
Create grpo-qwen-2.5-3b-deepseek-r1-zero-countdown.yaml:

yaml
# Model arguments
model_name_or_path: /root/epfs/ascend_r1_turtorial/models/Qwen/Qwen2___5-3B-Instruct
model_revision: main
torch_dtype: bfloat16
bf16: true
output_dir: /root/epfs/ascend_r1_turtorial/output

# Dataset arguments
dataset_id_or_path: /root/epfs/zouxuhong___countdown-tasks-3to4

# Training arguments
max_steps: 450
per_device_train_batch_size: 1
gradient_accumulation_steps: 8
gradient_checkpointing: false
learning_rate: 5.0e-7
lr_scheduler_type: cosine
warmup_ratio: 0.03

# GRPO-specific parameters
beta: 0.001
max_prompt_length: 256
max_completion_length: 1024
num_generations: 2
use_vllm: false
vllm_device: "cuda:1"
vllm_gpu_memory_utilization: 0.8

# Logging arguments
logging_steps: 1
save_steps: 100
seed: 2025

# SwanLab logging
swanlab: true
project: Try_r1
experiment_name: qingyun-4090-jupyter

3. Training Script (train_r1_grpo.py)
See the full code in the original document.

4. Distributed Training Script (train_r1_grpo.sh)

bash
accelerate launch \
    --num_processes 2 \
    --config_file config/2rtx4090.yaml \
    train_r1_grpo.py \
    --config config/grpo-qwen-2.5-3b-deepseek-r1-zero-countdown.yaml

5. Start Training

bash
bash train_r1_grpo.sh

Model Deployment and Inference

The saved model contains only weights and configurations. To use it, merge it with the base model:

python
from peft import PeftModel
from transformers import AutoModelForCausalLM, AutoTokenizer
import torch
import os
import shutil

def copy_files_not_in_B(A_path, B_path):
    """Copy files from A to B if they don't exist in B"""
    if not os.path.exists(A_path):
        raise FileNotFoundError(f"Directory {A_path} not found")
    if not os.path.exists(B_path):
        os.makedirs(B_path)

    files_in_A = set(f for f in os.listdir(A_path) if not (".bin" in f or "safetensors" in f))
    files_in_B = set(os.listdir(B_path))
    files_to_copy = files_in_A - files_in_B

    for file in files_to_copy:
        src = os.path.join(A_path, file)
        dst = os.path.join(B_path, file)
        if os.path.isdir(src):
            shutil.copytree(src, dst)
        else:
            shutil.copy2(src, dst)

def merge_lora_to_base_model(adapter_path, save_path, base_model="Qwen/Qwen2-0.5B"):
    """Merge LoRA adapter with base model"""
    if not os.path.exists(save_path):
        os.makedirs(save_path)

    tokenizer = AutoTokenizer.from_pretrained(base_model, trust_remote_code=True)
    model = AutoModelForCausalLM.from_pretrained(
        base_model,
        trust_remote_code=True,
        low_cpu_mem_usage=True,
        torch_dtype=torch.float16,
        device_map="auto"
    )

    # Load adapter
    model = PeftModel.from_pretrained(model, adapter_path, device_map="auto", trust_remote_code=True)
    merged_model = model.merge_and_unload()

    # Save merged model
    tokenizer.save_pretrained(save_path)
    merged_model.save_pretrained(save_path, safe_serialization=False)
    copy_files_not_in_B(base_model, save_path)
    print(f"Merged model saved to: {save_path}")

if __name__ == '__main__':
    merge_lora_to_base_model(
        adapter_path="your_adapter_folder",
        save_path="output/merged_model"
    )

Inference with Merged Model

python
from transformers import AutoModelForCausalLM, AutoTokenizer

MODEL_PATH = "output/merged_model"
PROMPT = """Use numbers [80, 9, 18] to create equation = 53.
You may use +,-,*,/ but each number only once.
Show reasoning in <think></think> and final answer in <answer></answer>.
Let's solve step by step.\n<think>"""

model = AutoModelForCausalLM.from_pretrained(MODEL_PATH, torch_dtype="auto", device_map="auto")
tokenizer = AutoTokenizer.from_pretrained(MODEL_PATH)

messages = [
    {"role": "system", "content": "You are a helpful assistant."},
    {"role": "user", "content": PROMPT}
]

text = tokenizer.apply_chat_template(messages, tokenize=False, add_generation_prompt=True)
inputs = tokenizer([text], return_tensors="pt").to(model.device)

outputs = model.generate(
    inputs.input_ids,
    max_new_tokens=512,
    top_p=0.95,
    temperature=0.7
)

response = tokenizer.decode(outputs[0][len(inputs.input_ids[0]):], skip_special_tokens=True)
print(response)

Experimental Results

Due to long training times, we recommend using tmux to maintain sessions. Training progress can be monitored on SwanLab:

SwanLab Results


References

philschmid/deep-learning-pytorch-huggingface
TinyZero
unlock-deepseek
DeepSeek-R1 Paper
DeepSeek-R1 GitHub
GRPO Paper
HuggingFace Open-R1

This concludes the complete English translation of the document. The translation maintains all technical details while improving readability for an international audience.
